Brief Introduction

3500/05-01-02-01-00-01

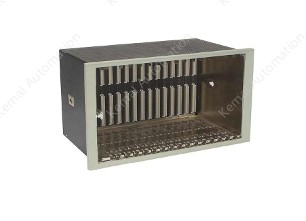

Bently 3500/05 frame common model3500/05-01-01-00-00-013500/05-01-02-00-00-013500/05-02-04-00-00-013500/05-01-01-00-00-003500/05-01-02-00-00-003500/05-02-04-00-00-00The Bently 3500 frame is used to install all the monitor modules and frame power supplies. It provides backplane communication for the 3500 frames to communicate with each other and provides the required power to each module.The 3500 frame is available in two sizes:1 Full-size frame – 19" EIA frame with 14 module slots available2 Mini frame – 12-inch frame with 7 module slots availableThe 3500 frame is available in three order forms:1 Panel Mounting – Mount the 3500 frame in a rectangular opening in the panel and fasten it with the clamps provided with the frame. Wiring and accessing I/O modules from the back of the frame.2 Frame Mounting – Mount the 3500 frame in a 19" EIA rail. Wiring and accessing I/O modules from the back of the frame.3 Wall Plate Mounting – Mounts the 3500 frame on a wall or in a panel that cannot be attached from the back. Wiring and accessing I/O modules from the front of the frame. The 3500/05 Mini frame does not have this option.The power supply and frame interface modules must be installed in the two leftmost slots. The remaining 14 frame positions (or the remaining 7 for mini frames) can be used to install any module.Bently 3500/05 frame ordering information3500/05-AXX-BXX-CXX-DXX-EXXA Frame size: 0 1 19 inch frame (14 module slots)0 2 12" miniature frame (7 module slots)B Mounting Options: 0 1 panel mounting options, full size frame0 2 Frame Mounting Options, Full Size Frame (Mounted in 19" EIA Frame)0 3 Wall Plate Mounting Options (not available for miniature frames)0 4 Panel Mounting Options, Miniature Frame0 5 Frame Mounting Options, Miniature Frame
